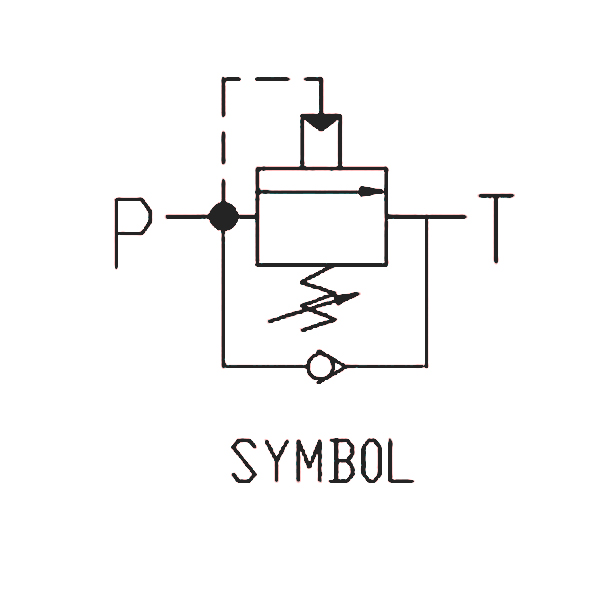

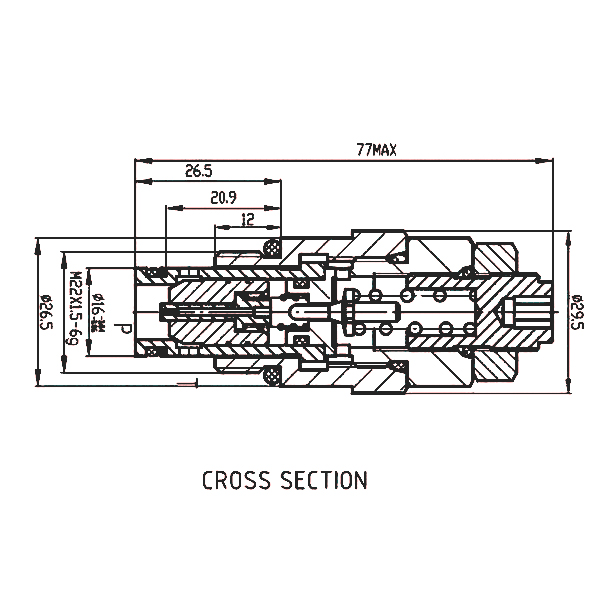

當P口壓力達到設定壓力后，先導閥芯首先被打開，由此產生的壓差使得主閥芯打開，P到T實現溢流。該類型的閥一般具有較高的啟閉率，內泄漏小，適用于高壓力、大流量的液壓系統。

When the pressure at "P"reaches the valve setting,the pilot spool starts to open , Next the main spool opening because of the pressure drop between inside and outside of main spool, Realize overflow from P to T.This type of valve generally has high opening and closing rate ,very low internal leakage, Suitable for the hydraulic system of high pressure and large flow.

1.額定壓力 (Rated pressure):100bar

2.額定流量(Rated flow):40L/min

3.開啟率(Cracking Rate)≥90%

4.閉合率(Closing Rate)≥85%

5.補油開啟壓力(Oil Make-up Cracking Pressure):0.6bar

6.內泄漏(Internal Leakage) ≤30ml/min at 75bar

7.油液清潔度(Cleaning code):20/18/15(NAS9)

8.工作溫度(Temperature range):-20~+100℃

9.每轉壓力變化(Pressure change per turn):60bar

10.安裝扭矩(Installation Torque):38~43Nm

11.鎖緊扭矩(Nut Tightening Torque):27~32Nm
